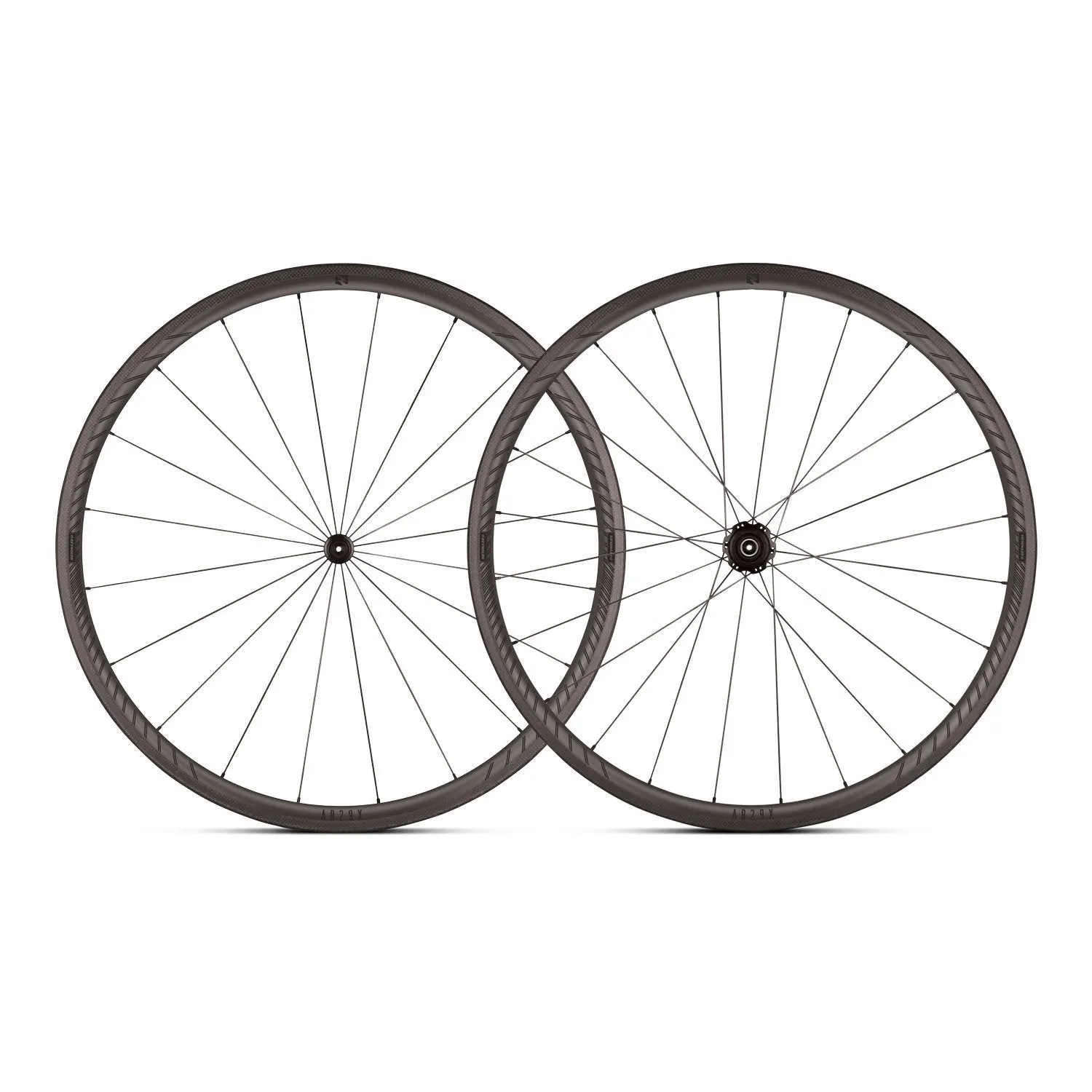

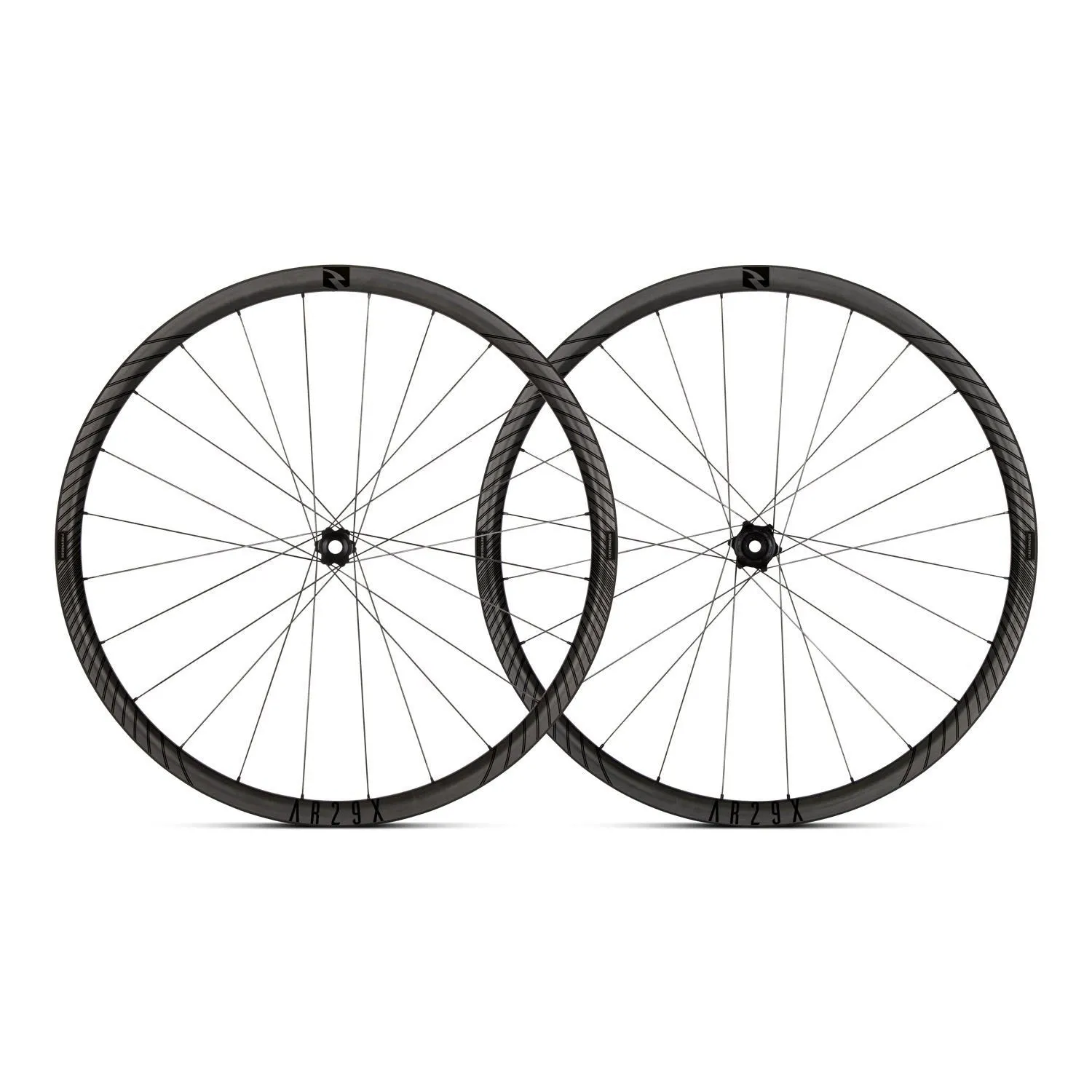

The Reynolds ARx series delivers an unmatched selection of carbon fiber wheels to offer you the perfect product capable of tracking the types of terrain and roads you ride. The ARx line of wheels carries on the heritage of our wildly popular Attack, Assault and Strike wheels with wider rim profiles optimized for modern, wider tubeless tires. Working with the wider profiles allowed our engineers to design sleek, new rim shapes that vastly improve stability in crosswinds in the deeper sectioned rims. The new ARx profiles are not only wider and faster, but they are also lighter than their Attack, Assault and Strike predecessors.
- Bladed Sapim CX-Sprint spokes which are both lighter and more aerodynamic
- Painted rims with water transferred graphics for a clean and subtle appearance
- Lighter hubs with a sleeker overall appearance
FEATURES
- Wide, tubeless ready rim provides better fit for higher volume tires that increase grip, lower rolling resistance and provide greater comfort
- Refined, wider rim shapes have been optimized for crosswind stability at a variety of yaw angles
- Features Sapim CX-Sprint bladed spokes with lightweight alloy nipples
- Premium graphics offer ultra clean and subtle appearance

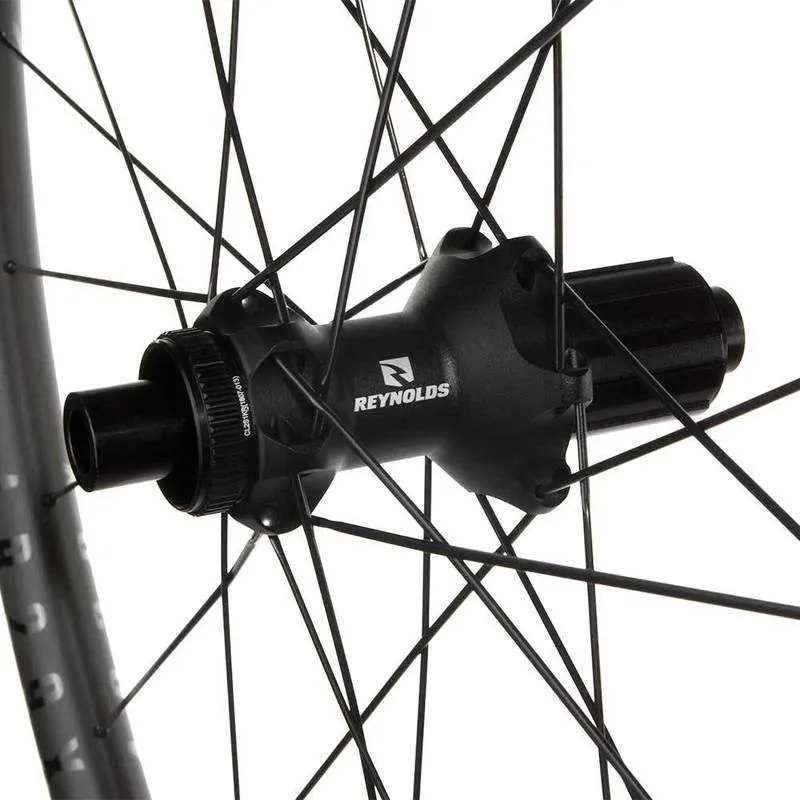

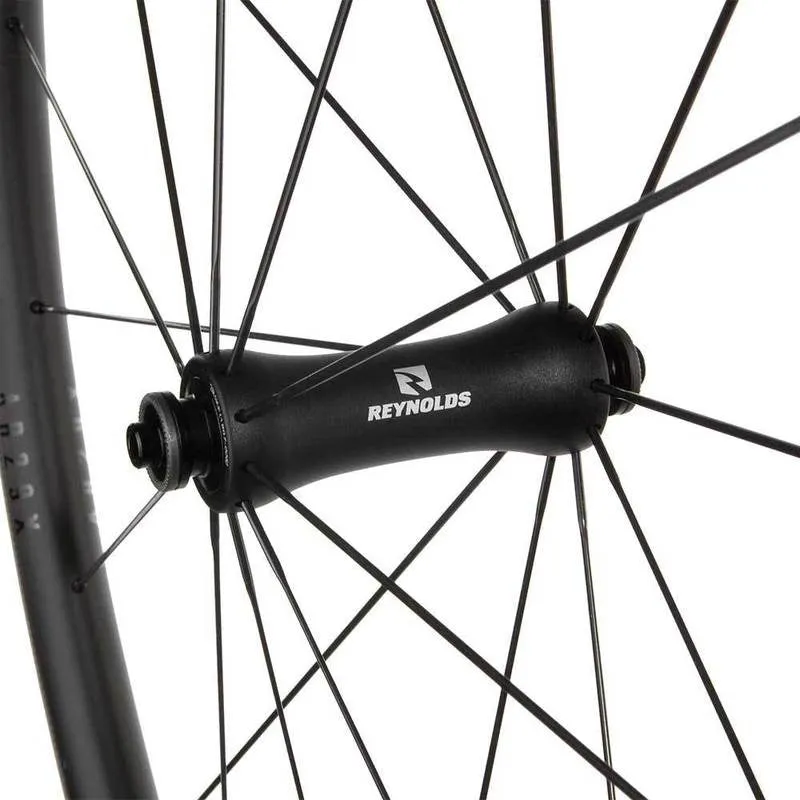

- Equipped with fast rolling and smooth reynolds allroads hubs
- Disc and rim brake specific models available
- Ctg2 brake track is 30% more resistant to heat than previous models
- Lifetime warranty
- 30 day customer satisfaction guarantee
Specifications

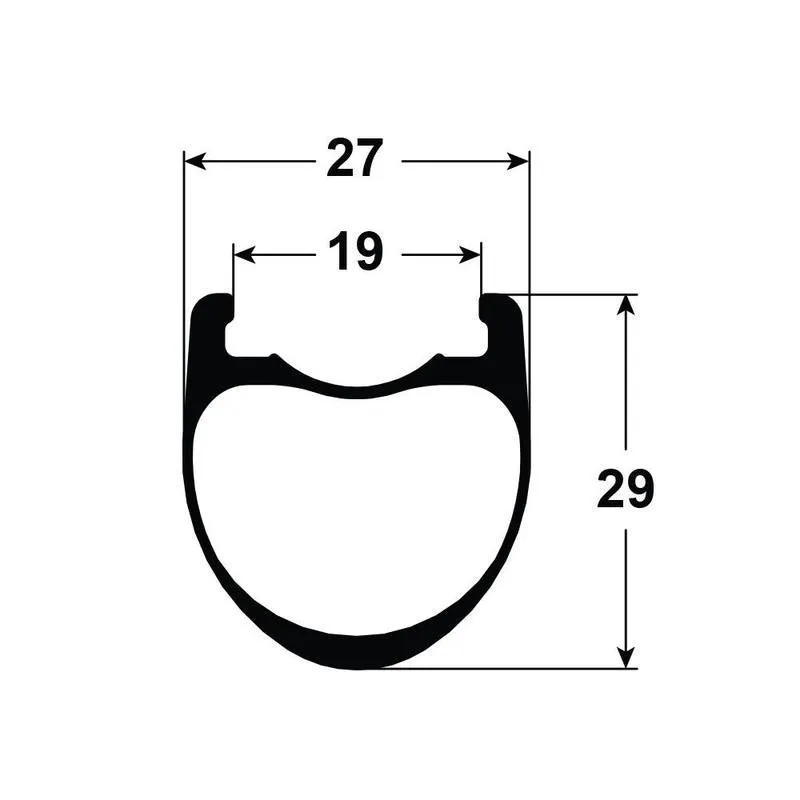

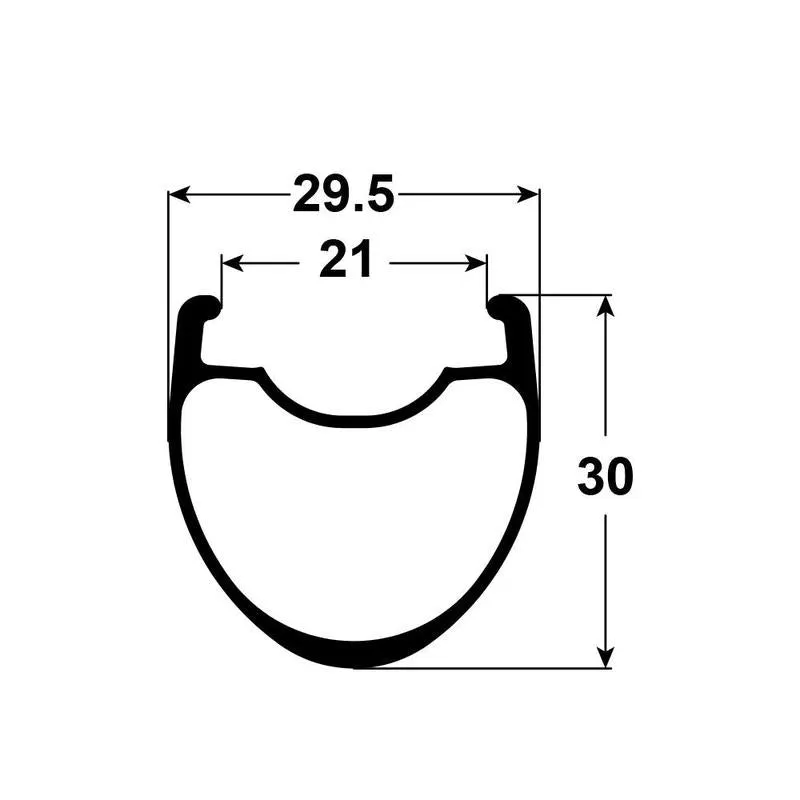

- Inner Rim Width: 19MM (rim Brake), 21MM (Disc Brake)
- Outer Rim Width: 27MM (Rim Brake), 29.5MM (Disc Brake)
- Rim Depth: 29MM (Rim Brake), 30MM (Disc Brake)
- Spokes: F20 | R24 (Rim), F24 | R24 (Disc)

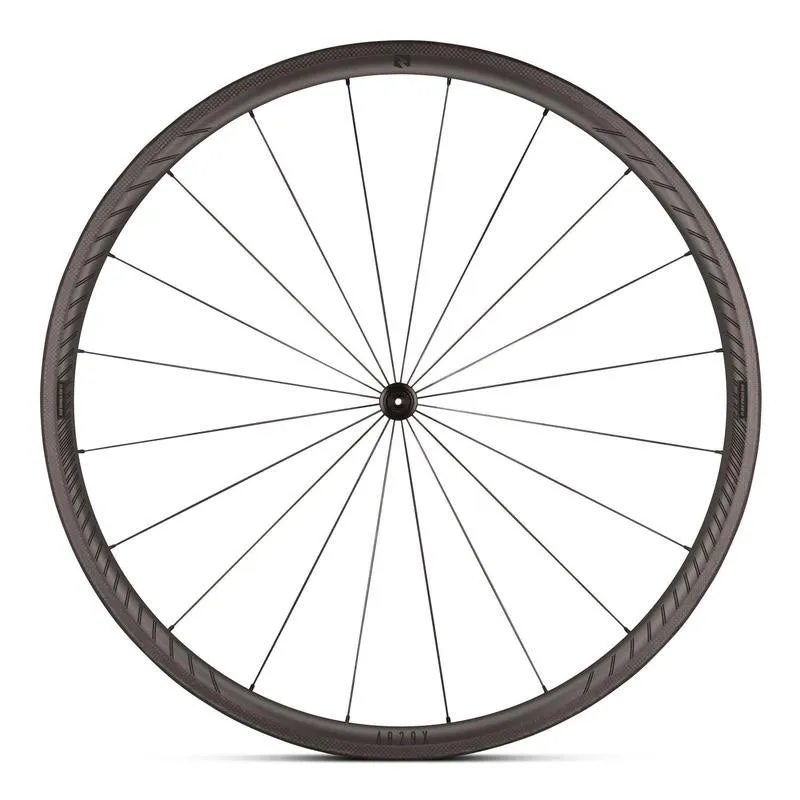

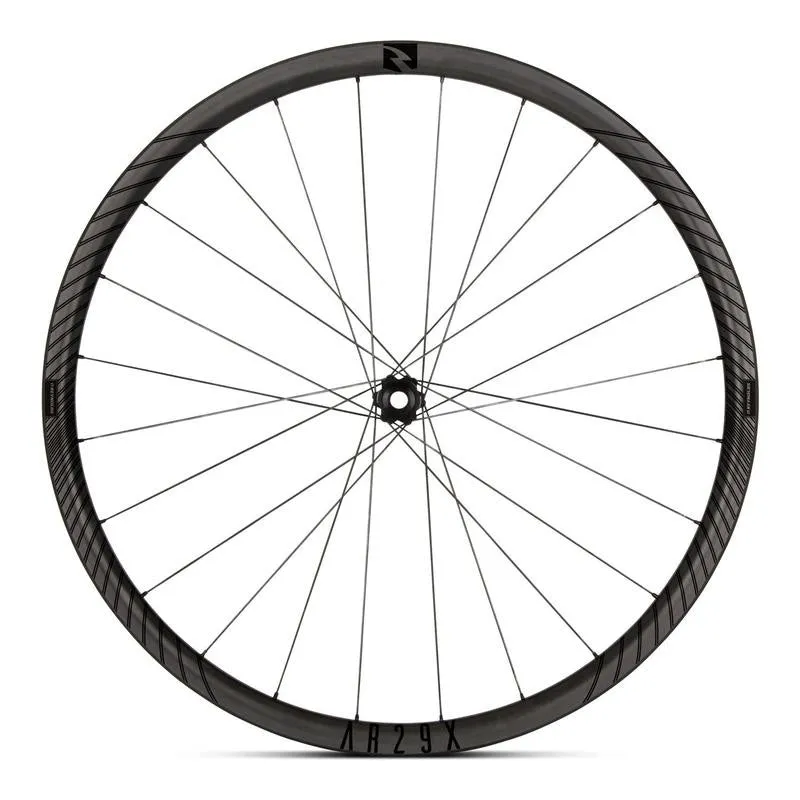

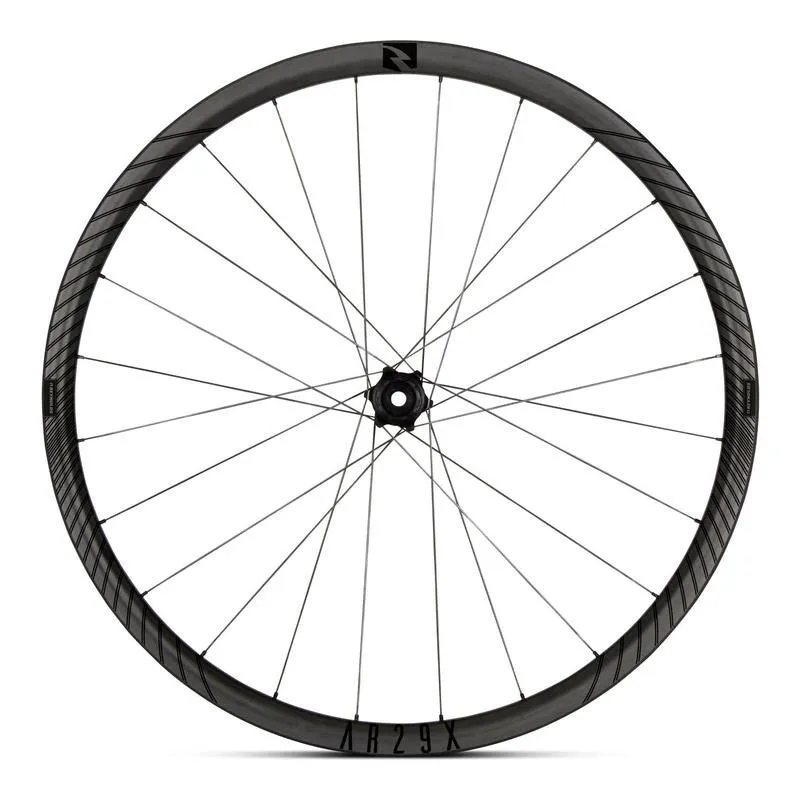

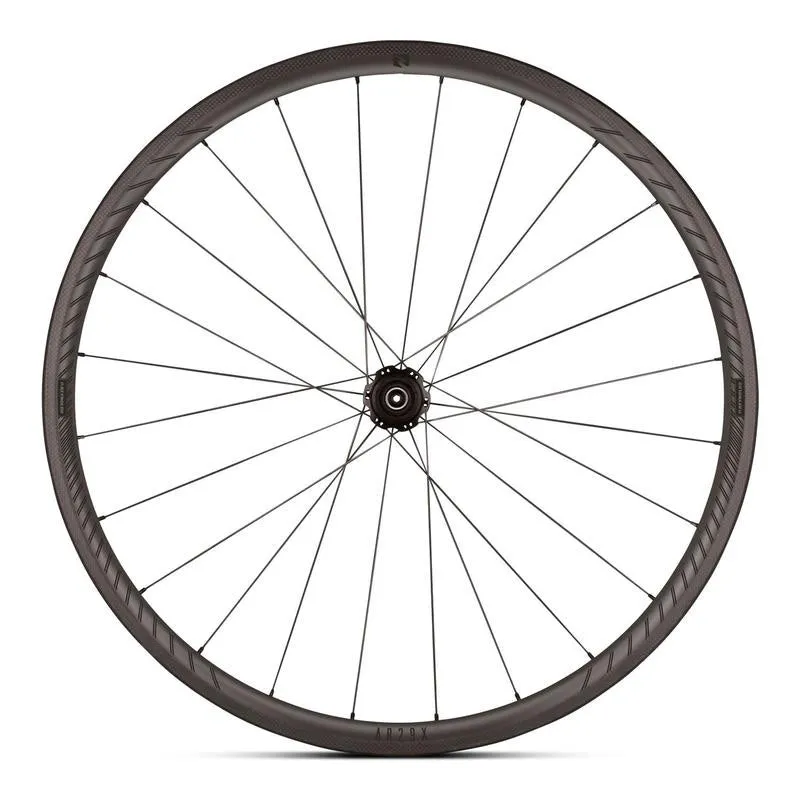

- Spoke Pattern: Front Radial | Rear 2x (Rim), Front 2x | Rear 2x (Disc)
- Weight: 1390g (Rim), 1455g (Disc)
- Technology: PR3, BWI

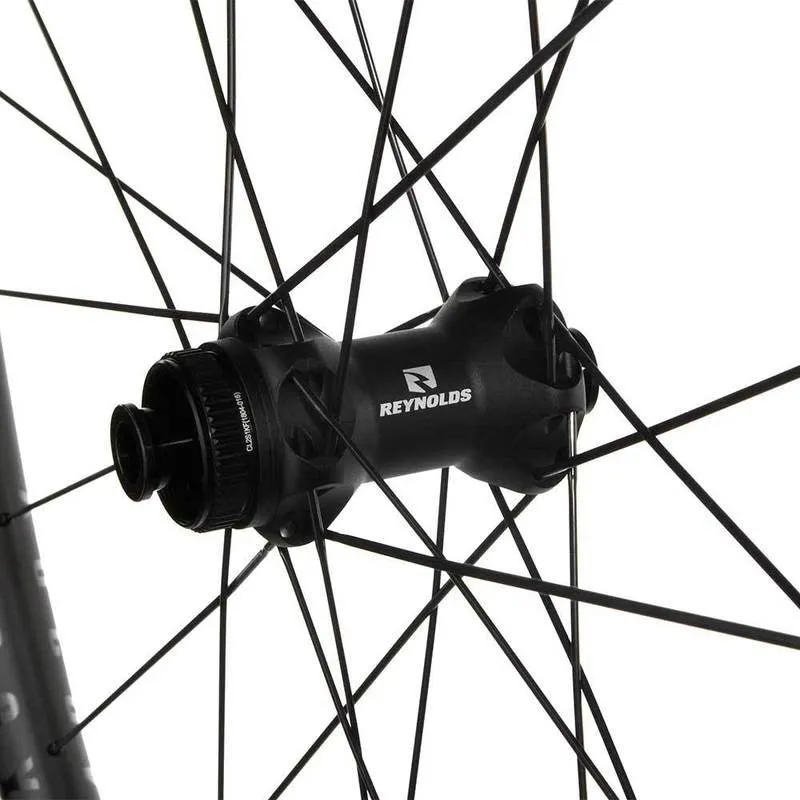

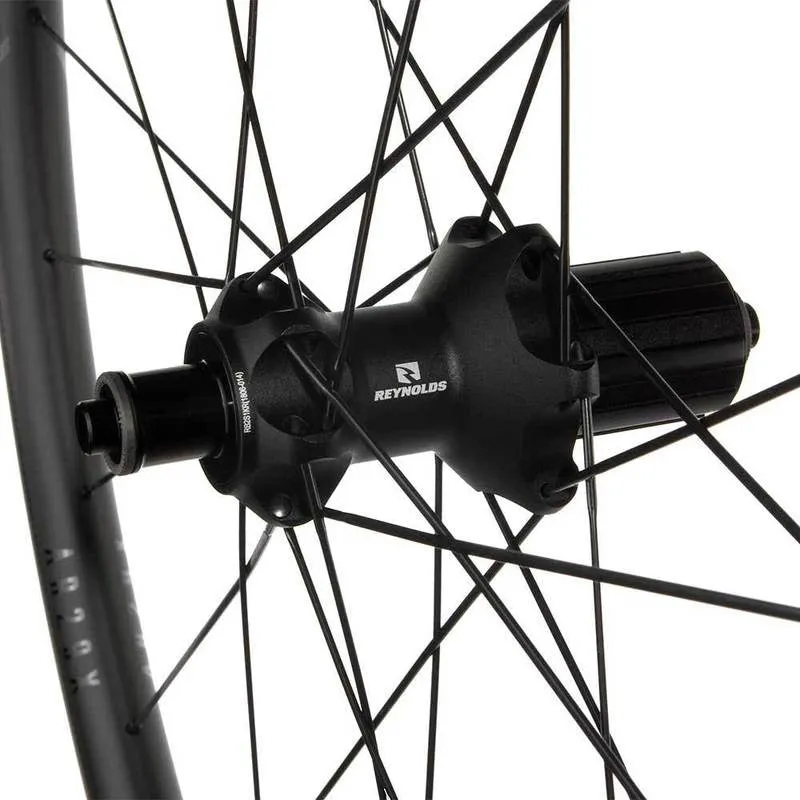

- Hub: Front Reynolds Hub | Rear Reynolds Hub
- Spoke Type: CX-Sprint
- Nipple: External Alloy
- Engagement: 10°
- Pawl: 4
- Decal: Black water slide

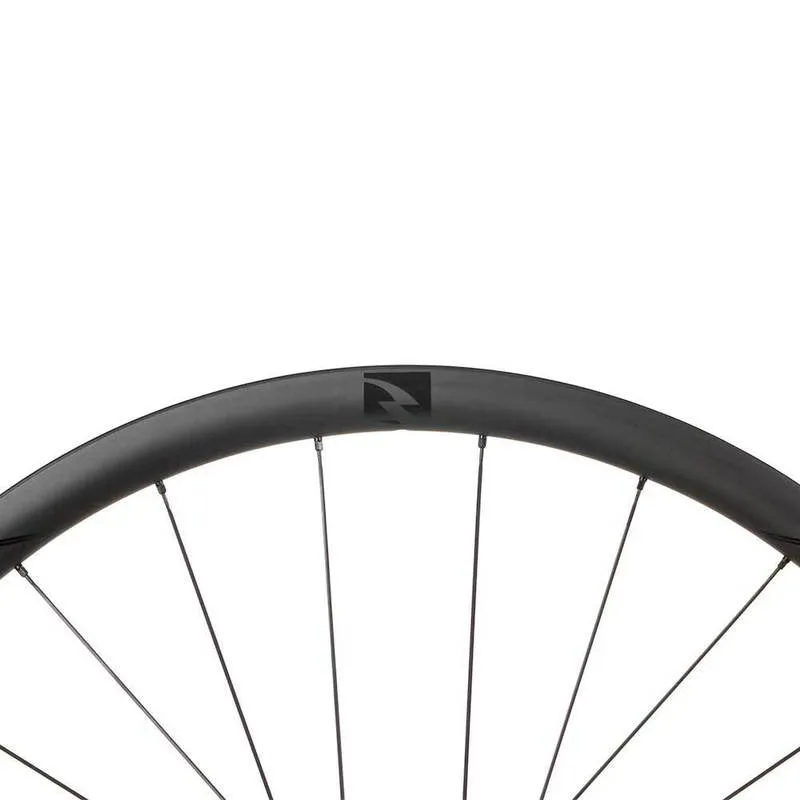

- Rim: Attack Carbon Tubeless
WHAT'S IN THE BOX
- Front & Rear Quick Release Skewers (Rim Brake)
- End Caps (12TA/12x142 Installed, 15TA Included) (Disc Brake)
- 2x45mm Tubeless Valve Stems
- Cryo-Blue Power Pads (Rim Brake)

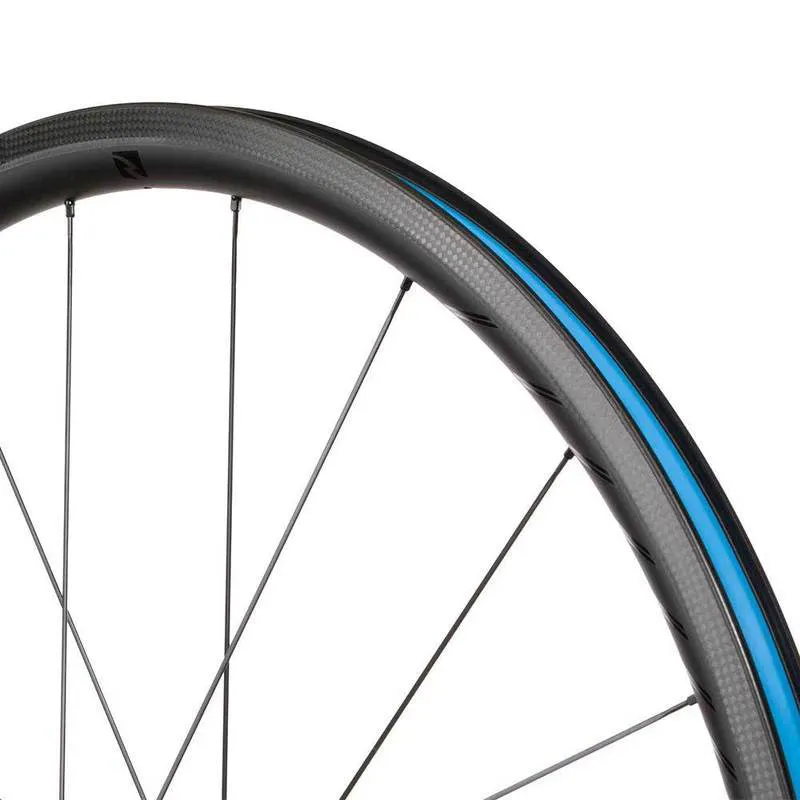

- 22mm (Rim), 25mm (Disc) Tubeless Tape installed
- Reynolds Owner's Manual
